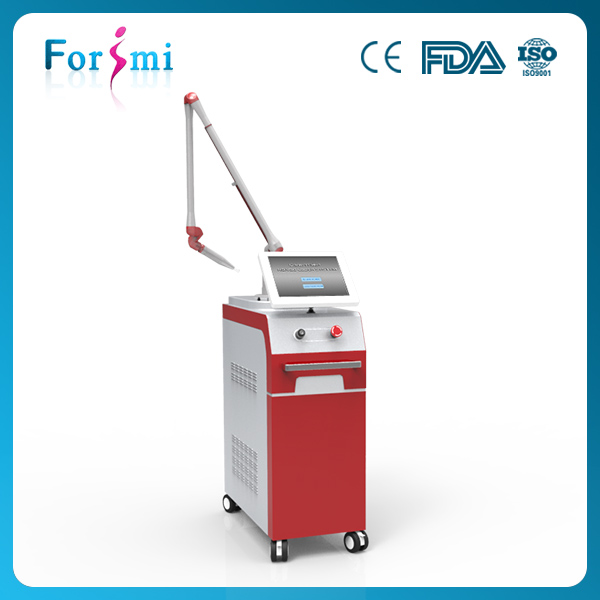

q switch nd yag laser tattoo removal system laser tattoo machine
for sale
Specifaction:
| Laser type | Electro-optic ND YAG Q-switch Laser |
| Wavelength | 1064nm , 532nm ,1320nm |
| Laser output method | Pulse electro-optic adjusting Q |
| Pulse Duration | 8ns±2ns |
| Pulse energy | 1500mj(1064nm) ,800mj(532nm) |
| Spot diameter | 0.7-8mm adjustable |
| Guiding beam arm | Seven-joints articulated arm |
| Pulse rate | 1-10Hz |
| Aiming beam | 650nm red diode laser |
| Input voltage | AC220v,AC110v |
| Cooling system | Closed-off Water cooling+wind cooling |
| Input power | 1000W |
| Net weight | 85kg |
| Dimension(cm) | 80*40*110cm
|
Q-Switches ND-YAG (neodymium-doped Yttrium aluminium garnet) Laser
can be visible to the human eye.Q-Switched ND-YAG Laser is the best
laser which helps to remove grey,black and dark blue inks.It also
helps to remove the red,yellow,& orange colors.This laser contains
potassium titanyl phosphate crystal.With the help of these crystal
it double the frequency of laser light.It has a wave length of 1064
nm and capability to reach deeper layers of skin tissues,which
other lasers can not done. Lasers are the most commonly used for
tattoo removal.Laser works by produce short pulses of intense light
which pass harmlessly by top layer of the skin and then this is
absorbed by tattoo pigment.Lasers directly injecting into the skin
in just trillionths of a second.Laser helps the tattoo pigment to
fragment into very small particles which later removed by the
immune system of the body.
Treatment for:
The following skin disorders can be treated with Nd:YAG laser
beams.
Tatoo removal
--Blue, grey and black tattoos can be removed with a Q-switched
Nd:YAG laser (1064 nm wavelength).
--The colour of the tattoo and the depth of the pigment influence
the duration and the outcome of the laser treatment.
--Laser treatment involves the selective destruction of ink
molecules that are then absorbed by macrophages and eliminated.
Vascular lesions
--ND:YAG can be used to remove spider and thread veins in the face
(cheek, temporal region, nasal dorsum, forehead) and legs.
1.Some vascular birthmarks (capillary vascular malformations)
2.Varicose veins in the leg
3.Facial veins (telangiectasis)
4.Haemangiomas (vascular tumours) in the face and around the mouth
Pigmented lesions
--Nd:YAG laser can be used to remove brown age spots (solar
lentigines), freckles, naevus of Ota, naevus of Ito, mongolian
spots, Hori naevus and café-au-lait-macules.
Light pulses target melanin at variable depth on or in the skin.
Hair removal
--Nd:YAG laser may be used for hair removal in any location
including underarms, bikini line, face, neck, back, chest and legs.
--Nd:YAG laser is generally ineffective for light-coloured (grey)
hair, but effective for treating dark (brown/black) hair in
patients of types I to IV, and perhaps light-coloured type V skin.
--Extreme caution is recommended in tanned or darker-skinned
patients, as the laser can also destroy melanin, resulting in white
patches of skin .
The longer-pulse (millisecond) 1064-nm Nd:YAG laser system has been
shown to be more effective in safely removing hair than has the
Q-switched (nanosecond) Nd:YAG system.
Light pulses target the hair follicle, which causes the hair to
fall out and minimises further growth.
Our service:
1.2 years warranty, if there any problem happens with your machine, we will repair
it free of charge (except the intended damage)
2.Free training, user manual and operation video are available, also, if it is not
enough, we can provide the online face to face education
3.OEM/ODM services, your logo, outshape, language, interface can specially be designed on your machine
